HDMI Extender Receiver and Sender 400ft 120m 1080p HDMI Extender Over IP TCP via RJ45 Cat5 Cat5e Cat6 Multi Receiver Supports Sky HD Box Laptop PC DVD STB PS4

Description

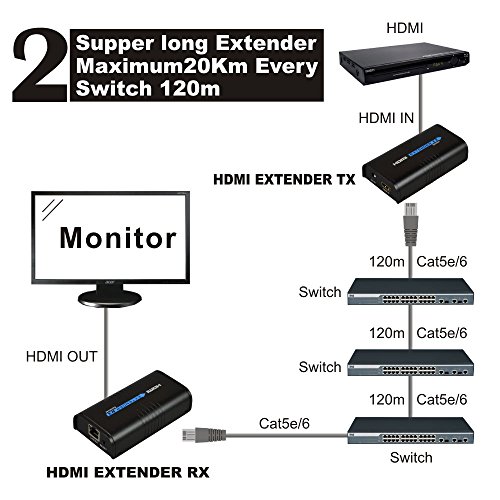

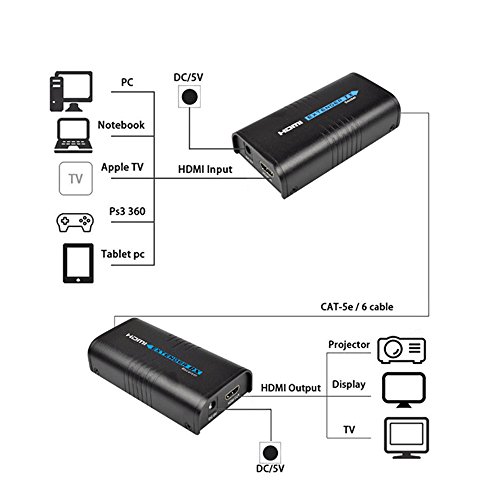

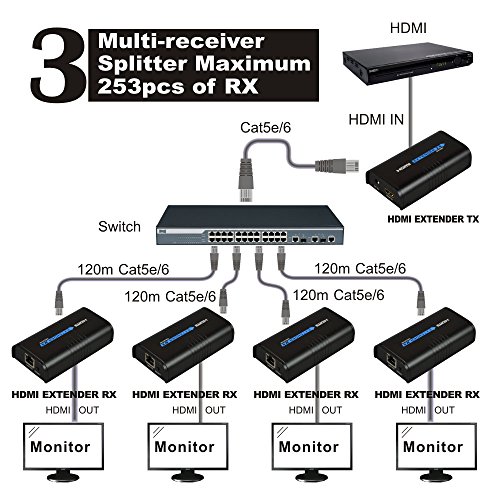

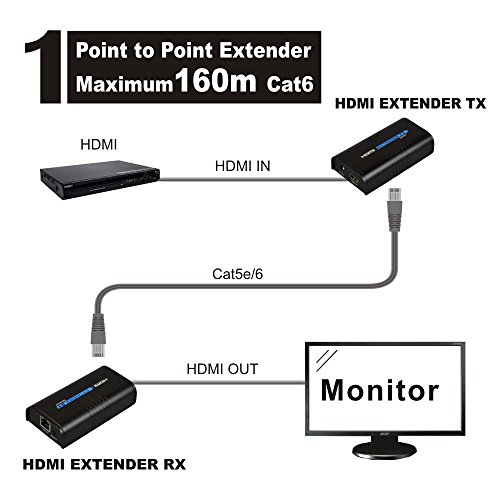

HDMI Extender Multi Receiver and Sender Features 1.Extends HDMI up to 100 meters for 1080p over one CAT5 2.Follow the standard of IEEE-568B 3.Supports resolutions up to 1080p Full HD 4.Supports Ethernet bandwidth: 100M 5.HDCP compliant 6.Extends by Router connection or LAN connection ,Cable length requirements are as follows CAT5 Maximum 80 meters between two Devices CAT5e Maximum 100 meters between two Devices CAT6 Maximum 120 meters between two Devices Technical Specifications Power Supply 2pc X DC 5V/1A Supports resolutions: 480i@60Hz,480p@60Hz,576i@50Hz, 576p@50Hz,720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz Link Connector: UTP/STP CAT5e/6 (Sender/Receiver) Power Consumption: 3W (max) eachFAQ Yellow light of Lan port is flashing but slowly! 1. Check whether HDMI Extender TX and HDMI Extender RX is reversed 2. Check whether HDMI source device output HDMI signal correctly 3. Change the HDMI cable of TX Yellow light of Lan port is flashing quickly but no display? 1. If HDMI source is graphics card, please set the resolution to be supported by display device 2. Check whether HDMI cable of RX is well connected 3. Change the HDMI cable of RX Yellow Led light of Lan port is not light? 1. Check connection of network cable 2. Network cable is too long Abnormal color display or flashing after all the devices are well connected. 1. Pls press reset button of HDMI extender 2. Follow the standard of IEEE-568B
