Question 1

Can provide the dimensions ie the 2 lengths

Accepted Answer

I can't measure mine as it is now installed - bit i'll explain how it fits and that may help. Firstly, the 3 inch refers to the long length which fits into a socket of the soil pipe. Typically the socket are 65 to 68mm. As for the short length, this clips into the wall frame and is flush with the frame - it doesn't protrude through your tile backer or tiles so you don't cut either end. With the piece installed in the frame, you bring the soil pipe all the way onto the pipe (65mm) this makes a good seal anything less and you run the risk of a leak. This piece is not to be used to bridge a gap in the soil pipe - it converts a standard soil pipe to sit correctly in the frame. The frame comes with another piece that connects to the toilet, and inserts into this piece. This is the part that you cut to take account of the thickness of your tile backer and tiles. If you want to go straight out of the back of a Grohe frame - you need this piece. Hope that helps.

Question 2

Do you have more to order? need more than 4

Accepted Answer

Hi there,

We currently keep 10 in stock. Please order through our Amazon shop.

Kind regards

NATIONAL SHOWER SPARES

Question 3

I need 20, how quickly could I get them

Accepted Answer

Hi there,

Unfortunately we can not provide 20, we would have to put the order on `back order` and delivery times are currently slow due to COVID-19.  Delivery is currently taking 14 working days, but this is only an estimate at this current time.

kind regards

NATIONAL SHOWER SPARES

Question 4

How do you connect the grohe pp-outlet bend 90mm to the main soil pipe of 110mm ?

Accepted Answer

This adaptor goes onto the frame for rear exit of waste. If you need to use the 90 it’ll either go left right or down. And I use a 110mm push fit or glued joiner. Hope this helps

ASIN	B00BUFAPKY
Best Sellers Rank	9,342 in Business, Industry & Science ( See Top 100 in Business, Industry & Science ) 45 in Pipes
Brand	GROHE
Colour	Silver
Connector Type	Coupling;Angle
Country of Origin	Germany
Customer Reviews	4.4 4.4 out of 5 stars (278)
Exterior Finish	Chrome
Global Trade Identification Number	04005176222115
Item Dimensions	20 x 30 x 8.6 centimetres
Item Length	3 Inches
Item Weight	0.11 Kilograms
Manufacturer	Grohe UK Ltd (EUR account)
Material	Stainless Steel
Model Number	42766000
Number of Packs	1
Number of Pieces	1
Part Number	42766000
Set Name	Uniset
Size	80 mm
Thread Size	RM
Thread Type	Metrisch Kegelig
Unit Count	1.0 count

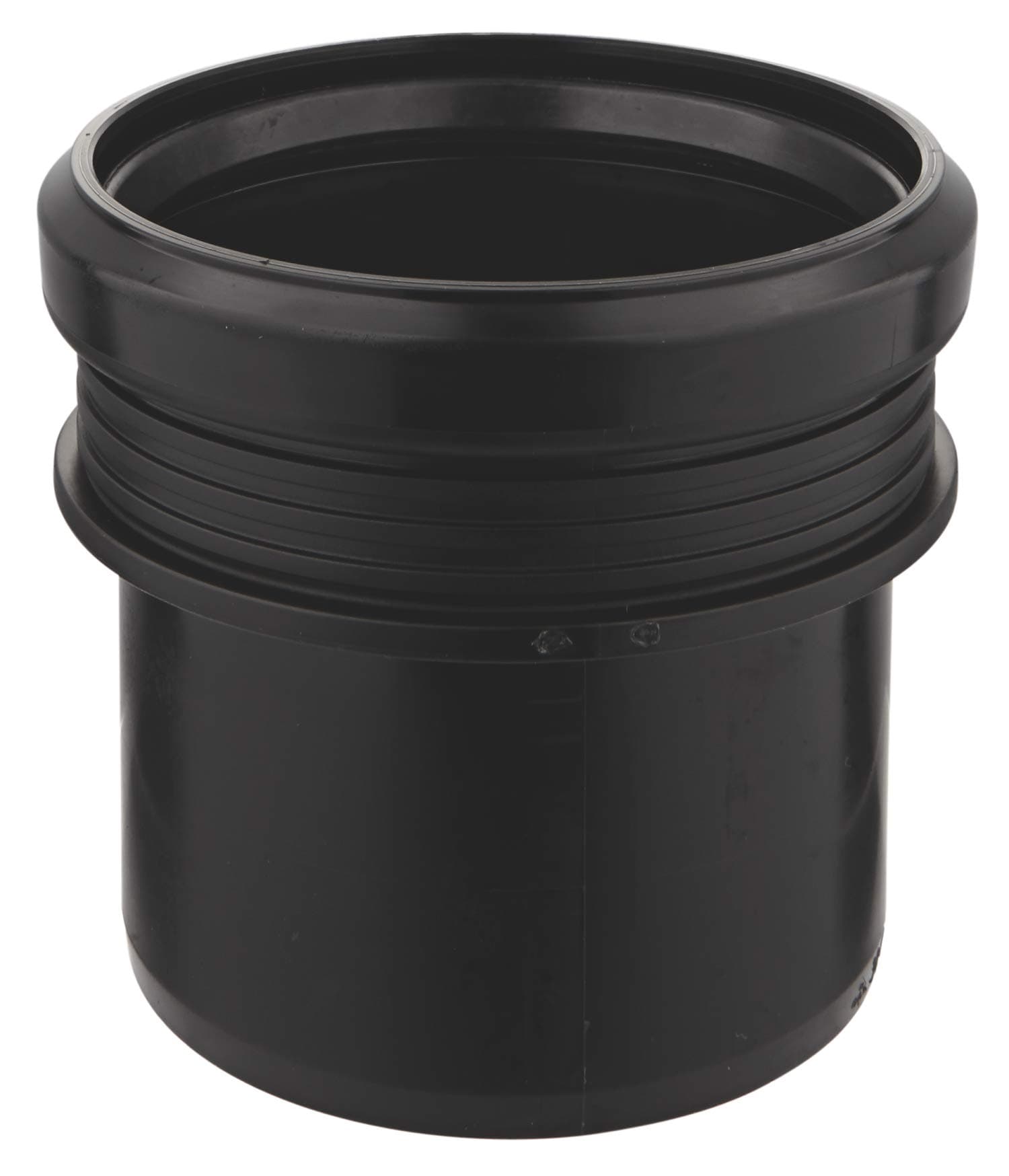

GROHE Uniset Distance Pipe 3" 42766000
