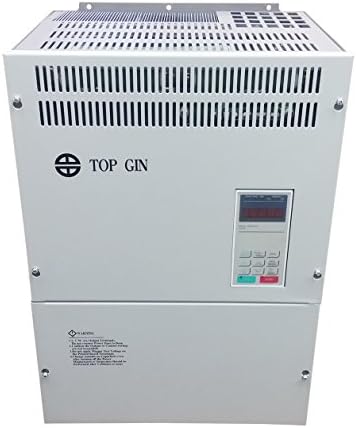

TOP GIN 75KW 380V 100HP 130A New Variable Frequency Drive Inverter VFD Applicable To Permanent Magnet Servo Controller IP For Spindle Motor Speed Control With English Operation Manual (VFD-75KW)

Description

Introduction High-carrier wave, sine wave PWM, vector control Starting torque offset (way of inputting the load detection value) Blackout management control Multi-speed operation (the maximum is 9 speeds) Automatic zigzag acceleration and deceleration operation Parameter Control Mode:SPWM Power: 75KW Input Phase: Three phase Output Phase: Three phase Type: AC Inverters Dimensions: 565*295*380 mm Input Voltage: 380~440V Output Voltage: 380~440V Input Frequency: 50Hz /60Hz Output Frequency: 0.5Hz-400Hz Working Temperature:-10~40℃ Humidity: Below 90% Relative Humidity (non-condensing conditions) Vibration: Below 20Hz:1G, 20~50Hz: 0.2G Feature 1. Individual setting for start, acceleration, deceleration and stop 2. Maximum toque: 455% of the rated motor toque 3. Overload capacity: 150% in one minute, 200% in ten seconds 4. Outstanding Servo Response 5. Multi-Speed operation (up to 9 speed) 6. Individual setting by 0.01 seconds 7. 1 year Warranty 8. Original manufacturing production and sales 9. Internally installed with a PID control software which may control and current and air volume without an external PID controller. Application Permanent Magnet Motor, High Level Motor, New types of machine tools, other specialist applications,...etc.
